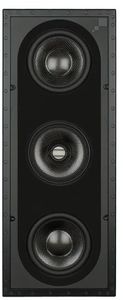

R1 Small Reference In-Wall LCR Speaker delivers exceptional surround sound for media rooms and theaters. Featuring a 4th generation coaxial driver and high excursion woofers, it ensures clear dialogue and detailed audio. Its low-profile grille provides a seamless aesthetic, perfect for any installation.Read More
Call for "Open Box" & "Demo" Deals - 512-454-4534
Designed to bring out the best in television, movies, gaming and concerts
4th generation coaxial midrange and tweeter for accurate imaging and crystal-clear dialog
Individual crossover networks for accurate, detailed sound
Integrated enclosure for amazing performance and reduced disturbance into adjoining rooms
Designed to fit into a standard wall or ceiling cavity (R1 and R2 fit into standard stud bay when installed vertically)
Any Reference model can be mixed and matched to achieve optimal sound in any room layout
Matches grille aesthetic of Sonance Visual Performance Series
Pair with Sonance DSP Amplifiers for custom-tuned performance
Limited Lifetime Warranty (5 years on Reference grilles) valid on Reference Series products purchased from an authorized Sonance dealer or distributor
General Specs | |
| Cut Out Width | 7.5 |
| Cut Out Height | 20.5 |
| Series | Reference |
| Color/Finish Name | White |
| Speaker Depth (in.) | 3.88 |
| Speaker Width (in.) | 8.88 |
| Speaker Height (in.) | 21.75 |
| Wireless | No |
| Frequency Response | 70Hz - 30Hz +/-3dB |
| Outdoor Approved | No |
| Built-in Microphone | No |
| Water Resistant | No |
| Manufacturer Warranty | 5 Year Parts & Labor |
| Mounting Type | In-Wall |
| Waterproof | No |
| Dust Resistant | No |
| Smart Compatible | No |
| Wifi Capable | No |
| Bluetooth Capable | No |
| Airplay Capable | No |
| RMS Power Handling (Watts) | 150 |
| Color | White |
| Impedance | 8 |
| Number of Speakers | 1 |
| Sensitivity | 90 |
| Speaker Type | In-Wall Speakers |
