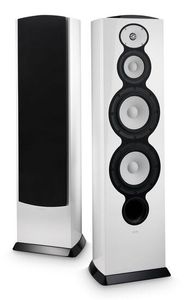

Revel® F228Be White 3-Way Dual 8" Floor Standing Loudspeaker

The Revel Performa F228Be is a powerful and elegant 3-way, dual 8-inch floorstanding loudspeaker that sets a new world standard in performance. Using the award-winning Performa3 F208 as the starting point, virtually every component was re-engineered to extract the finest details, the highest level of performance, and the most emotion possible. Featuring an all-new Beryllium tweeter, the F228Be delivers unparalleled detail and accuracy with an expansive and cohesive soundstage.

At the heart of the Revel Performa F228Be's immaculate sound lies a 1-inch beryllium tweeter driven by massive 85mm dual ceramic magnets. The powerful tweeter is mated to a 5th-generation ceramic-coated, cast-aluminum Acoustic Lens waveguide engineered to seamlessly integrate with the directivity of the companion midrange driver. The 5.25-inch midrange driver has been updated with a larger Deep Ceramic Composite (DCC) diaphragm, bigger voice coil and ceramic motor structure. The result is greater efficiency, less compression, improved dynamic range, reduced distortion, and increased power handling. PerformaBe crossover networks utilize all film capacitors and air core inductors in the midrange and tweeter circuits. These premium components allow Revel's world-class engineers to extract nuances and details from music that would otherwise be lost. Combined with traditional Revel high-order crossover slopes and proprietary Acoustic Lens waveguide geometry, transducer integration is seamless.

THE BEAUTY OF BERYLLIUM Beryllium - Element 4 on the Periodic Table - is a rare earth metal that is renowned for its remarkable physical properties that make it the ideal material for a high-frequency transducer. Compared to aluminum and titanium tweeter diaphragms, Beryllium offers 4.5 times the stiffness and three times more damping, and does so at only half of the weight. ELEGANT DESIGN F228Be top panels are painted in stylish metallic black with raised electroform badging. The speakers are available in a choice of four high-gloss finishes for seamless integration into any décor: Black, White, Walnut, and Metallic Silver

• 1-inch Beryllium Dome Tweeter
• High-order Crossovers with Film Capacitors and Air Core Inductors
• 5th-generation Acoustic Lens Waveguide
• Magnetically Attached Grilles
• DCC Cone Midrange and Woofers
• 4 Premium high-gloss finishes available
