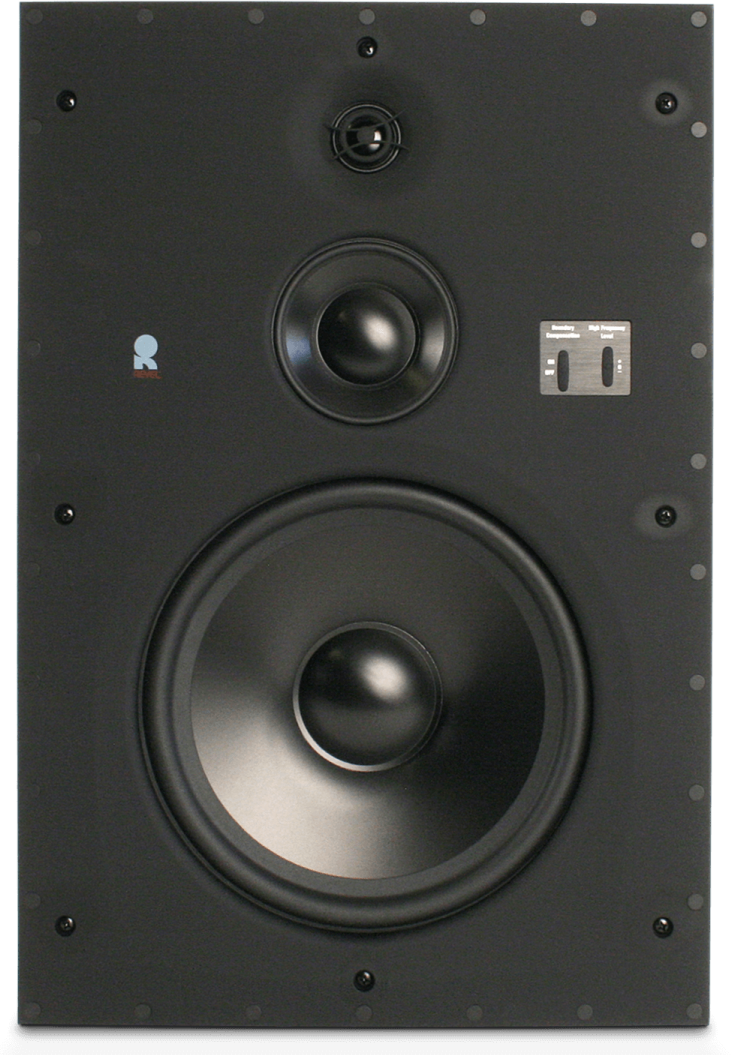

Revel® Architectural Series 9" In-Wall Loudspeaker-W893

Model #: W893
76258
Revel
At a Glance

Revel® Architectural Series 9" In-Wall Loudspeaker with long-throw woofers with cast frames and rubber surrounds provide high output with low distortion

$1,100.00Save $NaN
$1,100.00

Lower Price in Store


Get to know this product.

Since the first Revel speakers in 1996, Revel products have stood at the forefront of loudspeaker design and performance. Revel in-wall loudspeakers draw upon the same research, resources and unique perspective that put all Revel loudspeakers in a class by themselves. Revel in-wall loudspeakers provide unparalleled value and are known for their standard-setting low sonic coloration and their freedom from distortion over an extraordinarily wide dynamic range.

  • Long-throw woofers with rubber surrounds provide high output with low distortion.
  • 1-inch (25mm) metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis.
  • High-order crossover network delivers accurate timbre reproduction.

Boundary compensation switch (W893/W873/W783/W763) lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near an additional wall or the ceiling.

Three-position tweeter level control (W893/W873/W783/W763/W583/W563/W553L) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles.

Dimensions

  • Mounting depth: 3.7” (9.4 cm)
  • Cutout dimensions (H x W): 17.4” x 11.6” (44.3 cm x 29.5 cm)
  • Grille finished dimension (H x W): 18.5” x 12.7” (47.0 cm x 32.3 cm)
Useful Documents
Specifications

Construction

Tweeter Composition:Aluminum Dome High Frequency
Midrange Size:3.5"

Other

Sold As:Each

Specifications

Sensitivity:89 dB
Speaker Type:In-Wall Speaker

Misc. Specs

Product Weight10.8
Impedance8 ohms
Woofer Size9"
