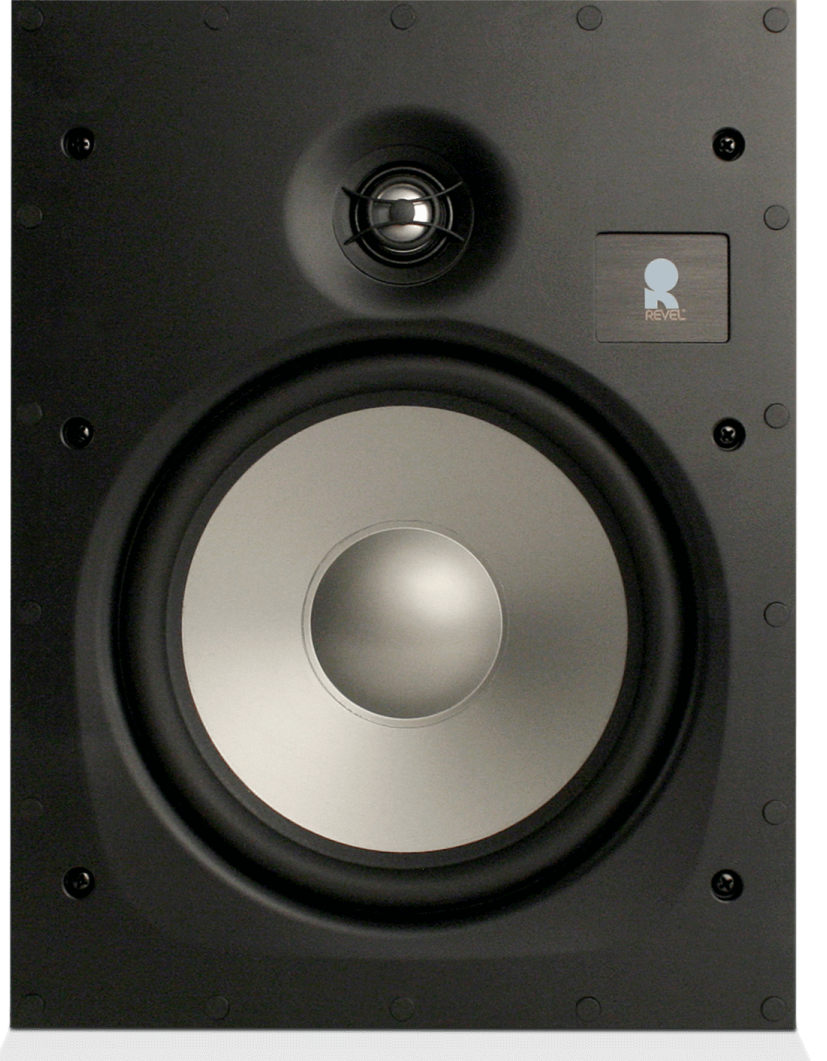

Revel® Architectural Series 8" In-Wall Loudspeaker

CALL US!

Revel® Architectural Series 8" In-Wall Loudspeaker 0
Revel® Architectural Series 8" In-Wall Loudspeaker 1
Revel® Architectural Series 8" In-Wall Loudspeaker 2
Revel® Architectural Series 8" In-Wall Loudspeaker 3
Revel® Architectural Series 8" In-Wall Loudspeaker 4

Revel® Architectural Series 8" In-Wall Loudspeaker

Model #: W383
76255
Revel
At a Glance
This entirely new range of in-wall loudspeakers combines Revel’s best-in-class acoustics with a patented tool-less installation mechanism and a sleek look that integrates easily into any décor.
$385.00Save $NaN
$385.00

Call for Availability

512-454-4534


Get to know this product.

This entirely new range of in-wall loudspeakers combines Revel’s best-in-class acoustics with a patented tool-less installation mechanism and a sleek look that integrates easily into any décor.

  • Long-throw woofers with rubber surrounds provide high output with low distortion.
  • 1-inch (25mm) metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis.
  • High-order crossover network delivers accurate timbre reproduction.

Boundary compensation switch (W893/W873/W783/W763) lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near an additional wall or the ceiling.

Three-position tweeter level control (W893/W873/W783/W763/W583/W563/W553L) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles.

Dimensions

  • Mounting depth: 3.7” (9.4 cm)
  • Cutout dimensions (H x W): 11.9” x 8.9” (30.3 cm x 22.7 cm)
  • Grille finished dimension (H x W): 12.9” x 9.9” (32.8 cm x 25.2 cm)
Useful Documents
Specifications

Construction

Tweeter Composition:Aluminum Dome High Frequency

Other

Sold As:Each

Specifications

Sensitivity:89 dB
Speaker Type:In-Wall Speaker

Misc. Specs

Product Weight (lbs.)4.9
Color Finish NameWhite
RMS Power Handling (Watts)125
ColorWhite
Impedance8 ohms
Speaker TypeIn-Wall Speakers
Woofer Size8"
