Revel® Architectural Series 5" In-Wall Loudspeaker

Product Overview

Since the first Revel® speakers in 1996, Revel products have stood at the forefront of loudspeaker design and performance. Revel in-wall loudspeakers draw upon the same research, resources and unique perspective that put all Revel loudspeakers in a class by themselves. Revel in-wall loudspeakers provide unparalleled value and are known for their standard-setting low sonic coloration and their freedom from distortion over an extraordinarily wide dynamic range.

Long-throw woofers with rubber surrounds provide high output with low distortion.

1-inch (25mm) metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis.

High-order crossover network delivers accurate timbre reproduction.

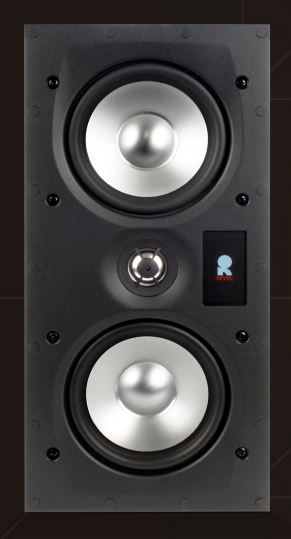

Dual-woofer model (W253L) is ideal for installation as left/center/right speakers with a wall-mounted flat-screen TV.

Dimensions

Mounting depth: 3.5” (8.8 cm)

Cutout dimensions (H x W): 14.1” x 6.4” (35.9 cm x 16.3 cm)

Grille finished dimensions (H x W): 15.1” x 7.4” (38.4 cm x 18.8 cm)
