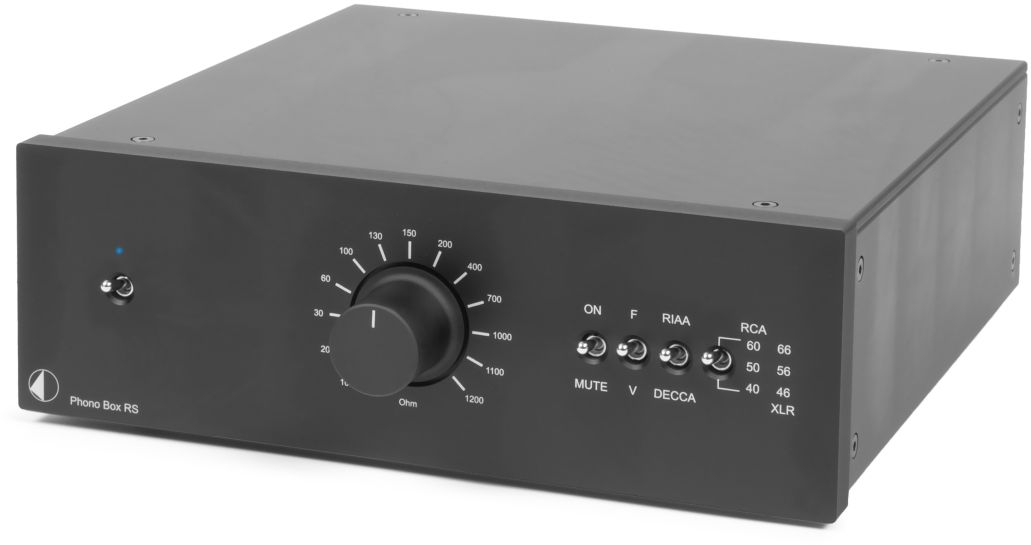

Due to use of best parts, like SSM2019 from Analog Devices as input stages and Linear Technology LT1010 as high current buffer stage, Phono Box RS delivers ultra low levels of distortion and noise. Its very low output impedance makes it insensitive to selection of interconnect cables and lengths.
Fully passive RIAA and DECCA equalization is selectable. Phono Box RS offers fully balanced circuitry and both XLR and RCA inputs and outputs. All in all vinyl playback will never have sounded as clear, detailed and smooth, than with this superlative phono stage!
|Input Impedance||Fixed 10 Ohms or 47kOhms; Variable 10 - 1200 Ohms|
|Load Capacity Switchable||100pF, 200pF, 300pF, 420pF, 520pF|
|Output Impedance||50 Ohms|
|Gain, MM/MC||RCA: 40, 50, 60 dB, XLR: 46, 56, 66 dB|
|Signal To Noise Ratio||91 dBA|
|RIAA Accuracy||Within 0.3dB/20Hz - 20kHz|
|Subsonic||20Hz / - 12 dB|
|Inputs||RCA & XLR|
|Outputs||RCA & XLR|
|Power Supply||2 x 18V/300mA DC; 220 - 240V, 50Hz|
|Power Consumption||150mA DC < 1 watt standby|
|Dimensions W x H x D (with sockets)||206 x 72 x 210 mm|
|Weight||2000 g without power supply|
|Product Weight (lbs.)||4.41|
|Analog Audio(RCA) Input||1|
