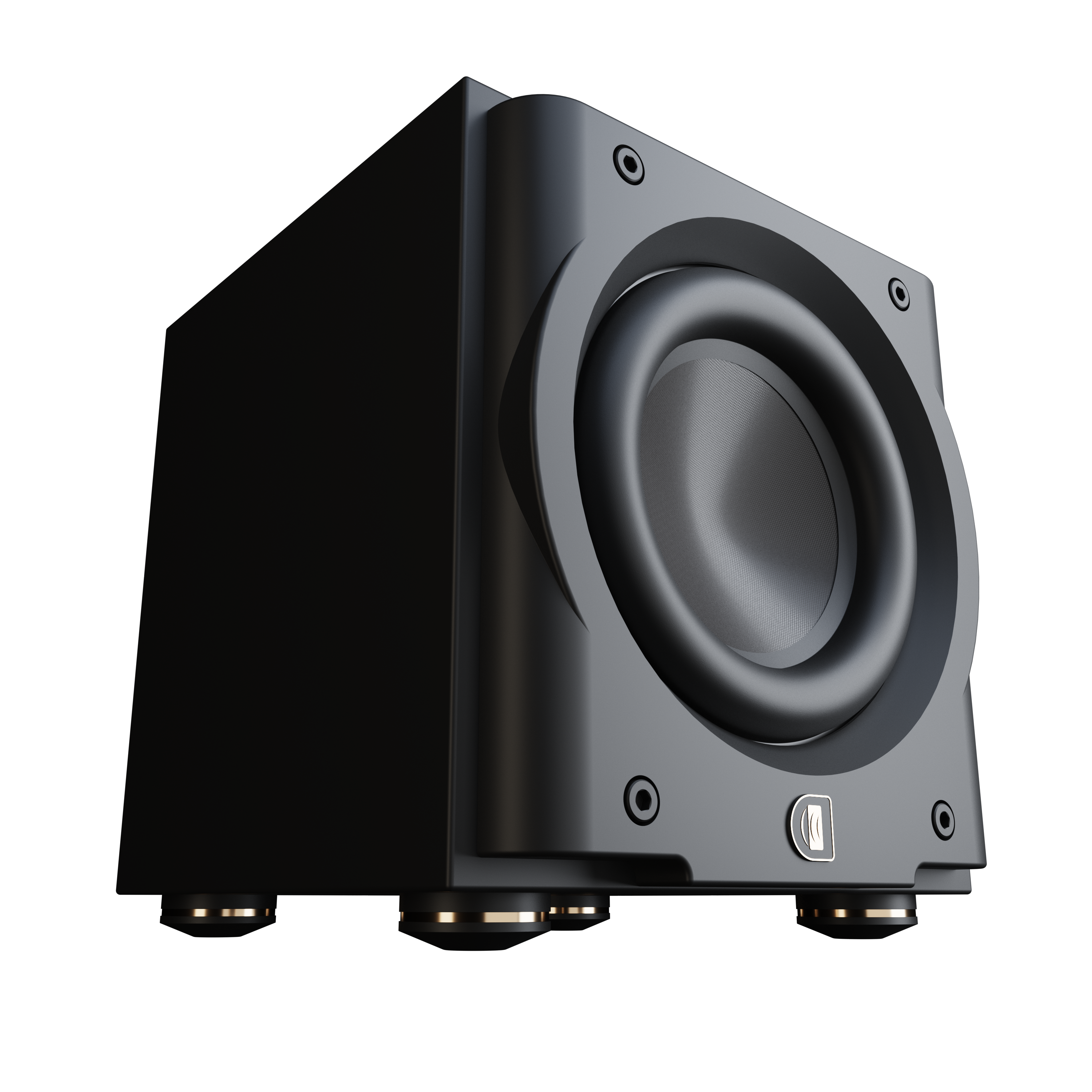

Perlisten Ultra Compact R8s Subwoofer. Unmatched Power and Precision. Experience a new level of bass with the Perlisten Audio R8s Subwoofer. To-date our most compact subwoofer, where cutting-edge technology meets exceptional performance.Read More
Call for Best Pricing!Call Us - 512-454-4534
R-Series subs – Trickle down technology from our flagship D-Series, we’ve developed a lineup of single driver-based subwoofers. Ground up drivers developed by our team of engineers. Glass fiber composite diaphragms, multiple aluminum shorting rings, massive magnets, multi-layer Nomex spiders and lightweight aluminum voice coil wire are the key ingredients – Proprietary nonlinear modeling techniques allow us to simulate all these components and then optimize for real world driver performance – free air and in box. Further refinement is done with the aid of our Klippel laser measurement system to dial things in. Powered by our new 500W amplifier to match the new designed 8” driver, all functions and safeties are controlled by a 48-bit data bath DSP and 32-bit ARM M4 Cortex processor, able to react in microseconds ensuring sonic accuracy. All R-Series subs share our 2.4” LCD touchscreen display and ability to control advanced settings using our App.
General Specs | |
| Manufacturer Warranty | 5 Year |
Technical specifications | |
| Alignment | Acoustic suspension |
| Amplifier | 500W rms |
| Display Interface | 2.4" LCD color touchscreen |
| App | iOS and Android |
| Processor | 32-bit ARM Cortex M4, double precision floating point math |
| DSP Engine | Ti DSP 48-bit data paths |
| Driver compliment | 215mm, Glass fiber diaprhragm |
| +/-28.0mm linear excursion | |
| Reference sensitivity | 86dB /150mV/ 1.0m |
Frequency Response | |
| THX EQ | 20-265Hz (-6dB) / 16-330Hz (-10dB) |
| Boost (Large Room) EQ | 16-265Hz (-6dB) / 14-330Hz (-10dB) |
| Cut (Small Room) EQ | 25-265Hz (-6dB) / 19-330Hz (-10dB) |
Inputs | |
Outputs | |
| Parametric EQ | 10-Band PEQ with 3 user presets |
| Low Pass filter | bypass, 30-160Hz, slope 6,12,18,24dB/oct |
| Phase | Variable 0-270 |
| Polarity | Normal / inverted |
| Configurable Auto turn-on and 12v Trigger | XLR, RCA |
| Dimensions (HxWxD) | 11.7 x 10.6x11.4" |
| Weight | 31.7 lbs. |
| Available finishes | Satin black and Satin white |
