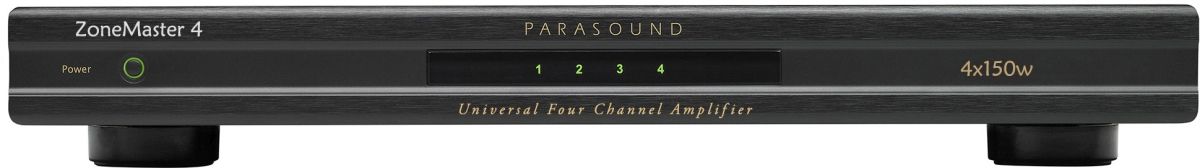

Parasound ZoneMaster Universal 4 Channel Amplifier

Product Overview

120 watts x4 @ 8 O

150 watts x4 @ 4 O or 2 O

8 speaker connections (A and B outputs for both channels)

High current for stable operation at 2 Ohms

Class AB input stage plus premium Class D power stage

Bus input with looping outputs

Audio sensing auto-on trigger, independent for each zone

12 volt auto-on trigger inputs, one for each zone

Master 12V trigger input to turn all zones on-off together

Looping 12 volt trigger outputs

Speaker level input for expanding systems w/out pre out jacks

Mono mode combines L and R for single speaker applications

Separate level controls for all 4 channels

Detachable speaker connectors accept up to 12 gauge wire

Short circuit and overheat protection with front panel indicators

0.5 watt standby power consumption meets Energy Star & EU specs

Compact 1u chassis size

Rack mount kit included in the box
