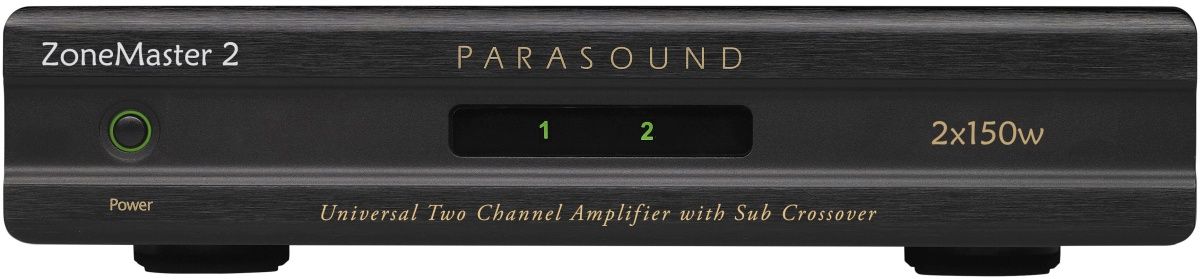

Parasound ZoneMaster Universal 2 Channel Amplifier

Product Overview

120 watts x2 @ 8 O

150 watts x2 @ 4 O or 2 O

4 speaker connections (A and B outputs for both channels)

High current for stable operation at 2 Ohms

Class AB input stage plus premium Class D power stage

Audio sensing auto-on trigger

12 volt auto-on trigger input

Looping 12 volt trigger output

Speaker level input for expanding systems w/out pre out jacks

Looping output to connect additional amplifiers

Mono mode combines L and R for single speaker applications

Separate level controls for both channels

Detachable speaker connectors accept up to 12 gauge wire

Short circuit and overheat protection with front panel indicators

0.5 watt standby power consumption meets Energy Star & EU specs

ZoneMaster 2 Specific Features

Compact 1u, 1/2 width chassis size

"ZRK" Rack mount kit sold separately (click to view)

Full Range Mono RCA Output

80Hz low pass Mono RCA output (for sub)

Built in 80Hz low pass filter in bridged mode for driving in-wall/in-ceiling woofers or passive sub(s)
