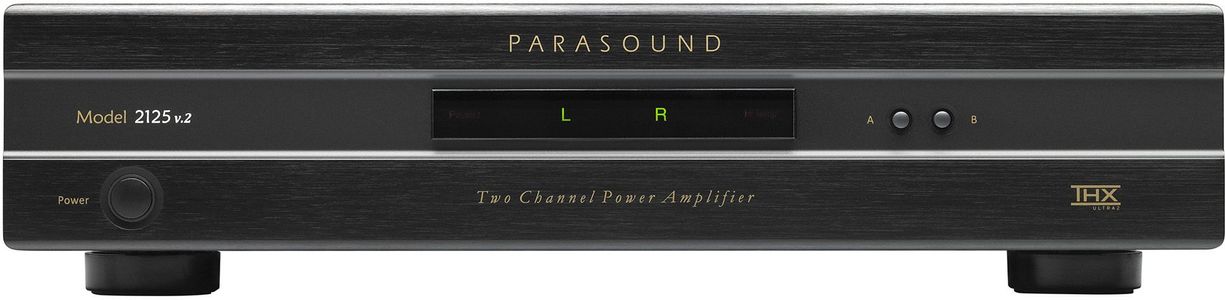

Parasound® NewClassic 2 Channel Power Amplifier

$1,099.00

At a Glance

Two pairs of speaker outputs with front panel A/B buttons. Rear-mounted lockout switch disables front A/B buttons. Automatic on/off by audio signal with 2 sensitivity settings. Fully discrete circuitry with high current toroid transformer.

Proposition 65 Warning for California Residents

THX Ultra2 certified

150 watts x 2 into 8 O (all channels driven)

225 watts x 2 into 4 O or 2 O (all channels driven)

400 watts x 1 bridged into 8 O or 4 O

35 amps peak current per channel

2 Ohm stable operation with load selector switch

Two pairs of speaker outputs with front panel A/B buttons

Rear-mounted lockout switch disables front A/B buttons

High pass filter, switchable for 20Hz or 40Hz

Automatic on/off by DC trigger with looping output

Automatic on/off by audio signal with 2 sensitivity settings

Fully discrete circuitry with high current toroid transformer

Bridging switch for stereo or mono operation

Efficient, low heat design

DC Servo and relay protection circuits

Rear-mounted left and right gain controls

Standby, channel status and high temperature indicators

Gold-plated RCA input jacks

Heavy duty 24k gold-plated 5-way speaker terminals

115/230v selector on rear panel

All Channels Driven

150 watts x 2, 8O

225 watts x 2, 4O

225 watts x 2, 2O (Load switch set to 2-3O)

Bridged Mono

400 watts x 1, 8O

400 watts x 1, 4O (Load switch set to 2-3O)

Current Capacity

35 amps peak per channel

Frequency Response

20 Hz - 50 kHz, +0/-3 dB, 1 watt

Dynamic Headroom

1.3 dB

Total Harmonic Distortion

0.25% at full rated output

0.015% at average listening levels

IM Distortion

0.05 %

Transient IM Distortion

Not measurable

S/N Ratio

114 dB at rated output, IHF A-weighted

106 dB at rated output, unweighted

93 dB at 2.828 V output, IHF A-weighted

84 dB at 2.828 V output, unweighted

Input Impedance

33 k O

Input Sensitivity

1 V in for 28.28 V out, THX standard

Inter-Channel Crosstalk

85 dB @1 kHz, 73 dB @10 kHz, 67 dB @ 20kHz

Damping Factor

Over 150 at 20Hz

12V Trigger Turn On

DC 9 – 12V, 15 mA

Audio Turn On

Quieter: 1 mV

Louder: 6 mV

AC Power Requirement

110 - 120 V / 220 -240 V, 50 - 60 Hz

0.5 watts standby

32 watts Idle (no audio)

550 watts full output

Dimension

Height without feet: 3.5”
