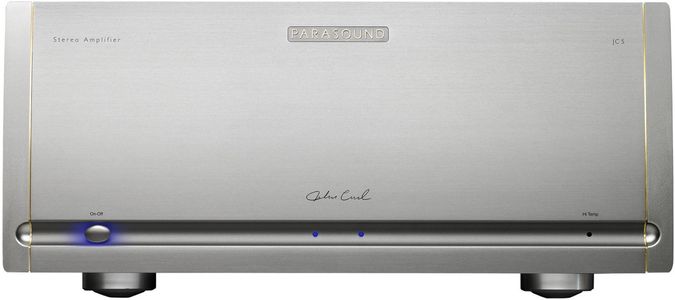

Product Overview
400 watts x 2 @ 8 O RMS, both channels driven
600 watts x 2 @ 4 O RMS, both channels driven
1200 watts x 1@ 8 O, in bridged mode
Circuitry designed by legendary John Curl
Ultra-high bias Class A/AB operation
12 watts per channel of pure Class A power
90 amperes peak current per channel
Stable with speaker impedance dips to 1.5 O
Balanced inputs with discrete circuits
CHK Infinium, custom 5-way speaker binding posts
Neutrik locking XLR input connectors
Vampire gold-plated RCA input & loop output jacks
Direct-coupled signal path, no capacitors or inductors
DC Servo and relay protection circuits
AC turn-on inrush surge protection with relay bypass
Dual-mono input stages with ±110 volt DC rails
JFET input stage, MOSFET driver stage
24 beta-matched 15 ampere, 60 MHz bipolar output transistors
1.7 kVA shielded toroid power transformer with independent windings for each channel
Independent power supplies for left & right channel input stages, driver stages, output stages
8,880 µF Nichicon Gold Tune filter capacitors for input stages
132,000 µF Rubycon filter capacitors for output stages
Full power is rated all the way down to 5Hz for unrestricted low-end bass
Harris hyper-fast soft-recovery bridge diode rectifiers
Automatic turn-on by 12 V trigger or audio sensing
4 rack space chassis with rear carry handles
Rack mount hardware is included
Available in silver or black
