Parasound® 2 Channel Stereo Preamplifier

Product Overview

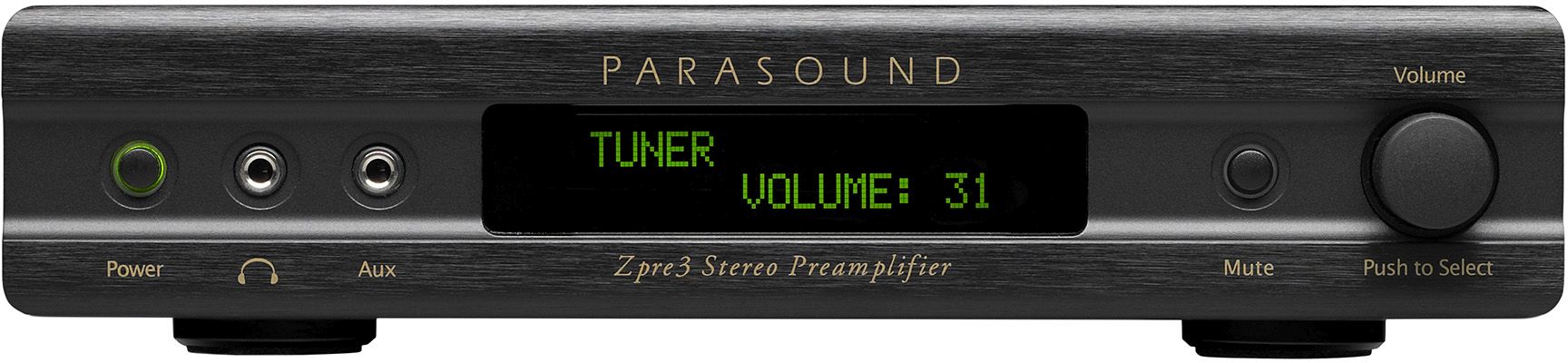

Front panel LCD function display with dimming

Automatic turn on volume memory

Favorite volume memory with remote control button

2-way RS232 w/ exact volume control & feedback

Discrete commands for all functions

Rename inputs to match connected source

5 audio inputs including a front panel Aux input

Bypass input integrates easily w/ a Sonos Connect® etc.

Bass, treble and balance adjustments by remote control

Variable and fixed stereo outputs

Variable and fixed mono/subwoofer outputs

12dB auto gain offset at front panel AUX to match levels of other sources

12V trigger output and rear panel IR input

Frequency Response

10 Hz - 40 kHz, +0/-0.5 dB

Total Harmonic Distortion: (20 Hz - 20 kHz)

<0.015%

Interchannel Crosstalk

62 dB at 20 kHz

Input Sensitivity

250 mV = 1 V output

Total gain = 12dB (volume set to 100)

Unity Gain = Volume set to 88

Maximum Output: 3.5 V

Input Impedance

24k O

Output Impedance

470 O

S/N Ratio

>100 dB, input shorted, IHF A-weighted

>90 dB, input shorted, unweighted

DC Trigger Output

12Vdc, 50ma

AC Power Requirement

5 Watts powered on

0.5 Watts in standby

100 - 250 VAC 50/60 Hz

Dimensions

Depth without AC cord and cables connected: 10”

Height without feet: 1.75”
