Product Overview
A Perfect Match for Vandersteen Speakers!

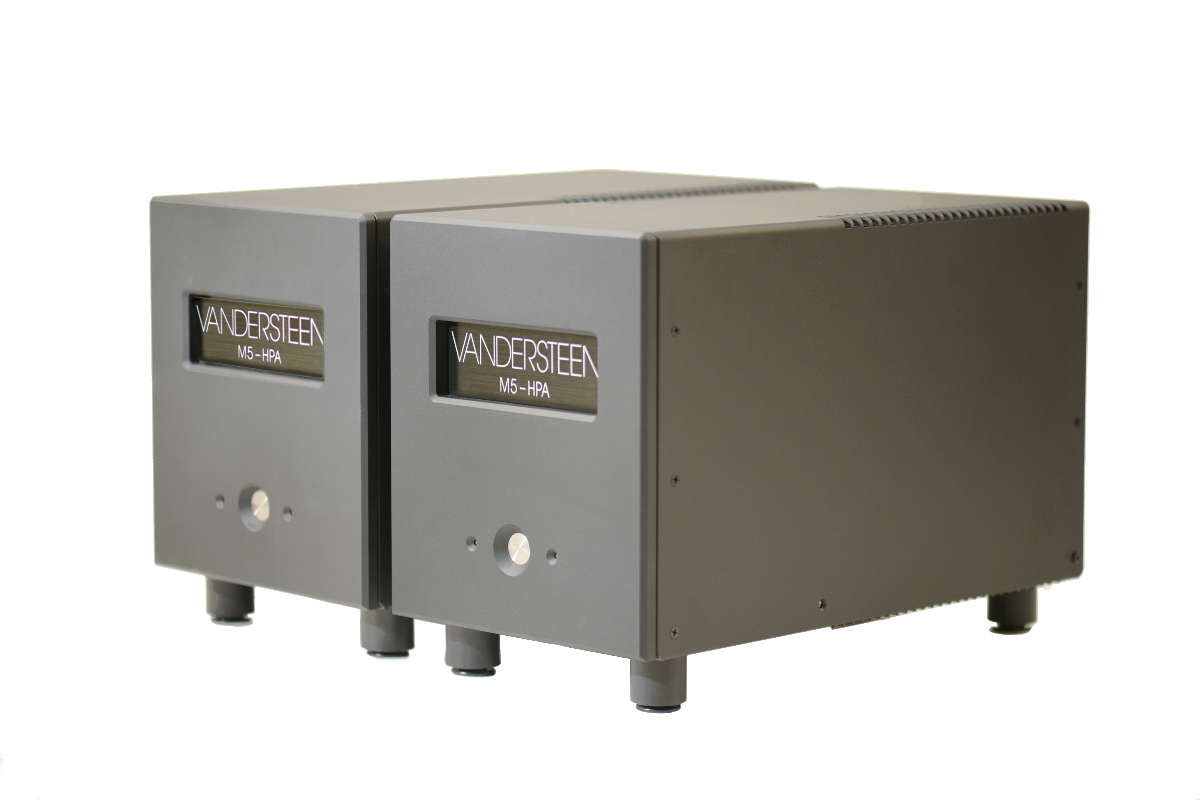

The dramatic reduction in distortion realized by Vandersteen’s patented Perfect-Piston™ drivers (US patent #8320604) made it clear to Richard Vandersteen that the next speaker performance frontier would only be achieved by designing a radical new state-of-the-art amplifier from the ground up. The resulting flagship M7-HPA inspired a more compact, practical solution: the M5-High Pass Amplifier (M5-HPA). This high-pass amplifier is excellent with Quatros, SUB THREEs (combined with any brand loudspeaker), and KĒNTO Carbons.
For years, Vandersteen has employed amplifiers custom-tailored to each design in Vandersteen’s subwoofers and the equalized bass sections in its powered-bass loudspeakers in conjunction with passive high-pass filters for ultimate performance. When employing the HPA Interface cables combined with a powered-bass Vandersteen speaker, the M5-HPA mono-block creates an entirely powered loudspeaker system in which the amplification over the entire frequency range is driven by perfectly tailored amplification.
Richard Vandersteen is responsible for the M5-HPA’s overall design and architecture; the amplifier was developed and built in a partnership between Vandersteen Audio and Dean Klinefelter, a talented designer and engineer.
M5-HPA Design and Performance Features:
300-Watts Into 4 Ohms
Zero-Feedback Design With Dual Single-Ended Circuits Connected By The Speaker Load
All Signal Transistors NPN Bipolars
Minimal Circuit Path (only 5 parts in the signal path)
10 Separate Power Supplies
All Analog Circuit Logic – NO DIGITAL PROCESSING OF ANY KIND
Integral 200 Hz, 100Hz, 80 Hz, 40 Hz, and 20 Hz adjustable High-Pass Filter
Aluminum Chassis with Noise Isolation Feet from HRS
No Emitter Resistors in the Output Stage
Buffer for Output is the Supplied Interface Cable
DBS - Dielectric-Bias-System
Made in the USA
M5-HPA Specifications
Frequency response: 20, 40, 80, 100, 200Hz (switchable) -200KHz -3db High Pass Amplifier
Power: 150 watts 8 ohms, 300 watts 4 ohms, 120 volt line
Input impedance: 200K Balanced
Gain: 25db
Distortion: .15% at 150 watts
Signal to noise: -90db A weighted 2 volts out. -110 db full power
12 Volt Trigger
Dimensions: 8" X 10.5" X 15.25"
Weight: 42 lbs gross 32 net
