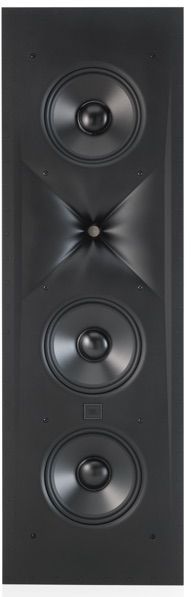

JBL Synthesis® SCL-2 In-Wall Loudspeaker-Matte Black

At a Glance

JBL Synthesis® SCL-2 In-Wall Loudspeaker-Matte Black with powerful cast-frame and Advanced Aluminum Matrix cone woofers

Proposition 65 Warning for California Residents

Part of the JBL Synthesis Custom Loudspeakers range, the SCL-2 offers the highest level of acoustic performance available from a flush-mount loudspeaker. The SCL-2 is designed with a 2.5-way, triple 8-inch (200mm) driver configuration for low-frequency extension with high output capability and powerful dynamics. A D2415K dual voice coil, dual 1.5-inch (38mm) annular ring diaphragm Teonex® compression driver with advanced HDI geometry horn works in conjunction with three powerful cast-frame, 8-inch (200mm) Advanced Aluminum Matrix cone woofers with low distortion motor structures.

The loudspeaker’s 5.5-inch (140mm)-deep enclosure fits standard wall construction applications and features a Sonoglass™ precision molded baffle assembly with integrated HDI waveguide/horn, and a zero-bezel, magnetically-attached grille.The loudspeaker’s enclosure can be oriented with the horn closer to the top or bottom, or on its side for center channel or reduced height applications. SCL-2 systems can be mixed and matched with other SCL speakers or any JBL Synthesis loudspeakers.

Designed to provide ultimate performance and the highest levels of dynamics from any in-wall loudspeaker, the SCL-2 can discretely integrate into any environment and décor. They can also be installed in a traditional application behind acoustic fabric or woven/perforated video screens without installing the grilles. They feature a discrete matte black baffle, HDI waveguide, and transducers, with a paintable white grille. The SCL-2 is the perfect solution for in-wall LCR or surround channel applications as part of JBL Synthesis home theater

2½-way, triple 8-inch/200mm driver configuration – ideal for wall mount

5.9-inch/150mm deep, rectangular footprint enclosure

Can be mounted vertically or horizontally for maximum application flexibility and performance

Computer-optimized HDI Constant Directivity Horn with very smooth and predictable off-axis behavior over a wide coverage area

D2415K, 1.5-inch/37.9mm annular ring Teonex® diaphragm compression driver with advanced HDI geometry horn

Powerful cast-frame, Advanced Aluminum Matrix cone woofers with low-distortion neodymium motor structures

Sonoglass® baffle with integrated HDI waveguide for maximum strength and high internal damping

Solid MDF enclosure installs behind drywall and provides optimized acoustic performance and enhanced acoustic isolation from the wall

Rubber isolation mounts attach cabinet to wall studs, ensuring a firm yet isolated mounting

Bi-Wire and Bi-Amp capable network using gold-plated binding posts on rear enclosure, and an easy Molex® baffle to network connection

Zero-bezel, magnetically-attached grille can be painted to match décor
