Product Overview

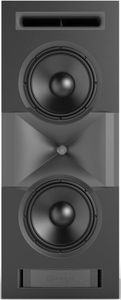

The SCL-1 is a custom in-room/built-in loudspeaker and is the flagship of the JBL Synthesis SCL loudspeaker range. It features JBL's patented D2430K dual 3-inch (75mm) compression driver mated to a large format High-Definition Imaging (HDI™) horn. Dual 12-inch (300mm) Carbon Cellulose Composite Cone (C4) cast-frame woofers operate in a patented Complementary Bass Alignment System (CBAS™) enclosure to provide high-output capability while delivering an easy load to the amplifier. A front-panel configuration panel allows for bi-wiring, bi-amplification, and crossover bypass for fully active operation with outboard digital crossovers. The SSW-1 delivers unparalleled performance behind projection screens and inside custom cabinetry and is ideal for use in large to extra-large rooms.
The flagship of the JBL Synthesis Custom Loudspeaker (SCL) series, the SCL-1 is designed for unparalleled performance in large theater rooms as an LCR behind projection screens and in custom cabinetry. As a large-format LCR loudspeaker, the SCL-1 is acoustically designed to complement the flagship SSW-1 dual 15” 5000 WRMS subwoofer and any of the JBL Synthesis Custom Loudspeakers (SCL series) as part of a complete JBL Synthesis solution. The SCL-1 features the patented JBL D2430K dual 3-inch (75mm) compression driver mated to a large, advanced geometry High Definition Imaging (HDI™) horn for extraordinarily detailed response and ultra-low distortion even at incredibly high listening levels. Two newly designed 12” cast-frame Carbon Cellulose Composite Cone (C4) woofers work in conjunction with a patented Complementary Bass Alignment System (CBAS™) enclosure constructed from 1-inch (25mm) MDF with extensive internal bracing. The CBAS design combines the acoustic benefits of sealed enclosures (more output below tuning frequency) and vented enclosures (more output at the tuning frequency) with less impedance swings to play louder and work more efficiently with amplifiers. These driver elements combine with an innovative installer-configurable multi-capacitor crossover network that can be driven by a single amp, dual amps, or bypassed for use with active external crossovers.
2-Way dual 12-inch (300mm) Flagship LCR loudspeaker delivers unparalleled performance in large theater rooms
Optimized for custom installation behind projection screens and in custom cabinetry
Timbre matched to all SCL loudspeakers and specially designed to be used with the SSW-1 subwoofer
Patented D2430K 3-inch (75mm) dual Teonex® annular ring diaphragm, dual voice coil compression driver with dual neodymium motor structures mated to large coverage, High-Definition Imaging (HDI™) horn precision molded out of Sonoglass®
Dual 12” (300mm) cast-frame Carbon Cellulose Composite Cone (C4) woofers in patented Complementary Bass Alignment System (CBAS™) enclosure design
Bi-amplifier, bi-wire and network bypass capability with installer configurable crossover
Heavily braced black vinyl clad cabinet built from 1-inch thick MDF with cloth-wrapped, edge to edge metal frame grille with magnetic attachment
