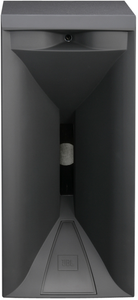

JBL Synthesis® SAM1HF High-Frequency Horn Module


JBL Synthesis® SAM1HF High-Frequency Horn Module 0
JBL Synthesis® SAM1HF High-Frequency Horn Module 1

JBL Synthesis® SAM1HF High-Frequency Horn Module

Model #: SAM1HF
JBL Synthesis
At a Glance
JBL Synthesis® SAM1HF High-Frequency Horn Module with pure-titanium compression driver and aluminum edge-wound voice coil
Request a Quote

Call for Availability


People also viewed:

Get to know this product.

The SAM1HF high-frequency horn module represents the synthesis of everything that JBL® has learned about the emotional power of audio and video in 60 years of preeminence in the field. It sets new benchmarks in the use of high technology and provides you with the experience of being in some of the world’s greatest movie houses and concert halls, right at home.

Ultrahigh-Frequency Compression Driver

  • 1″ (25mm) Pure-titanium compression driver with aluminum edge-wound voice coil and 2″ (51mm) neodymium motor assembly, mounted in a SonoGlass® constant-directivity horn for extended high-frequency response to exceed SACD™ and DVD-Audio specifications.

High-Power Compression Horn

  • Horns are commonplace in movie theaters across the world, because of their high power handling and well-defined high-frequency output. The horns employed in SAM1HF have very low distortion and a well-controlled directivity to put the dialogue at the center of the screen and the effects all around you.

SAM1 and SAM2LF (Sold Separately)

  • SAM1 and SAM2LF must be combined together and either SDEC-4500 (for bi-amplified active crossover) or SAM12X (for passive 3-way crossover).
  • SAM12X is a passive crossover for SAM1HF/SAM2LF modules, supporting one SAM1HF and up to two SAM2LF modules. SAM12X is compatible with SDEC-3000 and is sold separately.

*Image available shown with SAM1HF and SAM2LF; both are sold separately.



Sensitivity:98 dB
Frequency Response:60Hz – 40kHz

Misc. Specs

Product Weight (lbs.)25
Impedance6 ohms
Number of Speakers1
Depth (in.)11.5
Height (in.)17.25
Width (in.)8
