JBL Synthesis® S4S 10" Flush-Mount Passive Subwoofer


Model #:

NS4S

Model #: NS4S
960959
JBL Synthesis
$99,999.00

At a Glance

The S4S flush-mount passive subwoofer is part of the Synthesis Four system, offering you a choice of ways to fill 7,500 cubic feet of space with dramatic, full-spectrum sound from compact system components. Begin with three-way, in-wall main loudspeakers (one S4HC and two S4VC’s).Read More

Request a Quote

Call for "Open Box" & "Demo" Deals - 512-454-4534

Get to know this product.

Product Overview

Product Overview

The S4S flush-mount passive subwoofer is part of the Synthesis Four system, offering you a choice of ways to fill 7,500 cubic feet of space with dramatic, full-spectrum sound from compact system components. Begin with three-way, in-wall main loudspeakers (one S4HC and two S4VC’s). Back them up with two S4S subwoofers and an S820 amplifier for an all-in-wall solution and four S4Ai in-wall multipole surrounds. Add the power of an SDP-40HD processor/controller, SDEC-3000 digital equalizer and S7165 7-channel amplifier.

The S4S flush-mount passive subwoofer is part of the Synthesis Four system, offering you a choice of ways to fill 7,500 cubic feet of space with dramatic, full-spectrum sound from compact system components. Begin with three-way, in-wall main loudspeakers (one S4HC and two S4VC’s). Back them up with two S4S subwoofers and an S820 amplifier for an all-in-wall solution and four S4Ai in-wall multipole surrounds. Add the power of an SDP-40HD processor/controller, SDEC-3000 digital equalizer and S7165 7-channel amplifier. A complete S4S loudspeaker system includes the S4S in-wall subwoofer and the S4SBB back box, which must be purchased separately. A high-quality, external two-channel power amplifier, such as the JBL Synthesis S820, is also required, and must be purchased separately.

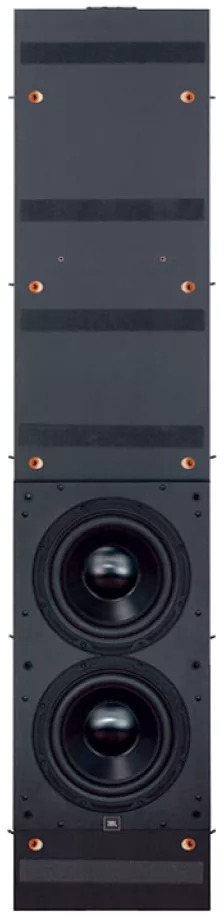

Flush-mount Passive Subwoofer

Two 10” (25.4 cm) front-firing woofers using Ceramic-Metal Anodized woofers for high output and low distortion.

Useful Documents
Specifications

General Specs

Product Weight (lbs.)24
ColorBlack
Crossover TypePassive
Speaker TypePowered Subwoofers
Frequency Response22Hz – 150Hz (-3dB)
Color Finish NameBlack
Product Weight (kg)10.9
Subwoofer Size10"

General

Frequency Response22Hz – 150Hz (-3dB)
Maximum Recommended Amplifier Power600 Watts
Impedance6 Ohms nominal 4 Ohms minimum
Sensitivity88dB (2.83V/1m), both woofers driven
Wall grille cutout dimensions (H x W)24.5” x 15” (62.2 cm x 38.1 cm)
Weight24 lb (10.9 kg)
