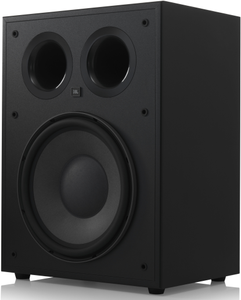

JBL Synthesis® S2S-EX Passive Subwoofer-Black

Model #: S2S-EX

At a Glance

JBL Synthesis® S2S-EX Passive Subwoofer-Black with Symmetrical Field Geometry™ motor structure and Super-Vented Gap™ cooling

WarningProposition 65 Warning for California Residents
JBL Synthesis® S2S-EX Passive Subwoofer-Black

Construction

Driver Component Size15"

Styling

ColorBlack

Specifications

Impedance8 Ohms
Sensitivity93 dB
Frequency Response22Hz – 400Hz

General Specs

Product Weight (lbs.)125
Depth (in.)15
Width (in.)21
Height (in.)27.5
Maximum Power Handling (Watts)3200
Firing DirectionSide
RMS Power Handling (Watts)3200

CALL US!

JBL Synthesis® S2S-EX Passive Subwoofer-Black

Model #: S2S-EX
174210
Model #: S2S-EX
JBL Synthesis
$99,999.00

Available in Store Only

Call for Availability

512-454-4534

At a Glance

JBL Synthesis® S2S-EX Passive Subwoofer-Black with Symmetrical Field Geometry™ motor structure and Super-Vented Gap™ cooling

Get to know this product.

The S2S-EX Ported Subwoofer is designed to deliver the powerful, deep bass that is demanded by the movie soundtracks and music of today. It has an impressive 15″ (380mm) cast-frame woofer (Model: W1500H) that is capable of producing the deepest lows without distortion. The ingenious Kevlar®-Kapok material in the woofer cone provides the rigidity needed to realistically replicate your favorite film’s special effects and musical performances without any additional coloration. The industrial grade cabinetry uses internal interlocking horizontal and vertical braces to provide a strong, rigid enclosure. JBL’s patented SlipStream™ low frequency port design works in concert with the woofer to produce deep bass response at all playback levels. The double-flared shape of the port is precisely engineered for greater low-frequency extension and reduced turbulence. Added to these features is the ability of the S2S-EX to be oriented either vertically or horizontally which provides flexibility in built-in applications. The S2S-EX is also a direct-fit replacement for older S2S subwoofers in existing systems. The S2S-EX gives multi-channel systems just the bass they are looking for.

    W1500H transducer with 15″ (380mm) Kevlar®-Kapok reinforced cone

    Symmetrical Field Geometry™ motor structure

    Super-Vented GAP™ cooling (patent no. 5,042,072)

    Specially optimized dual SlipStream™ ports (patent no. 7,711,134)

    Industrial cabinetry with interlocking internal braces

    3200-watt peak power capacity

    Frequency response down to 20Hz

    Grille included

    Vertical or horizontal orientation

    Front ported enclosure for easy installation as built-in

    Retrofitable in current S2S applications

Useful Documents
Specifications

General Specs

Product Weight (lbs.)125
Depth (in.)15
Width (in.)21
Height (in.)27.5
Maximum Power Handling (Watts)3200
Firing DirectionSide
RMS Power Handling (Watts)3200

Construction

Driver Component Size:15"

Specifications

Impedance:8 Ohms
Sensitivity:93 dB
Frequency Response:22Hz – 400Hz

Styling

Color:Black
