JBL Synthesis® 7" In-Ceiling Speaker

Product Overview

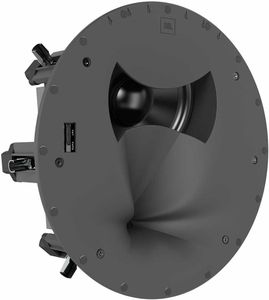

The SCL-5 is the highest performing round in-ceiling model in the JBL Synthesis Custom Loudspeaker (SCL) series. It is designed for deployment in high-performance immersive audio systems in medium to large size rooms. The SCL-5 features JBL’s patented 2409H 1-inch (25mm) compression driver mated to an offset High Definition Imaging (HDI™) horn. This patented horn design is integrated with an angled 7-inch (180mm) Advanced Aluminum Matrix cone cast-frame woofer operating behind an acoustic aperture waveguide. The innovative configuration yields incredibly smooth and consistent performance for off-axis placement up to 60 degrees from the listening position. The SCL-5 is acoustically designed to match any of the JBL Synthesis Custom Loudspeakers (SCL series) as part of a complete JBL Synthesis immersive audio solution.

2-way in-ceiling loudspeaker system designed for off-axis listening as height, in-ceiling LCR and surround channels

1-inch 2409H compression driver tweeter mated to a JBL patented offset High-Definition Imaging (HDI) horn assembly

7-inch (180mm) Advanced Aluminum Matrix cone, cast frame woofer with acoustic aperture waveguide baffle

Patented Cat Claw installation mechanism

Gold plated, spring-loaded binding posts

Includes paintable round and square zero-bezel, magnetically attached grilles

Compatible with CB10 pre-construction bracket
