Product Overview
Introducing the T Series

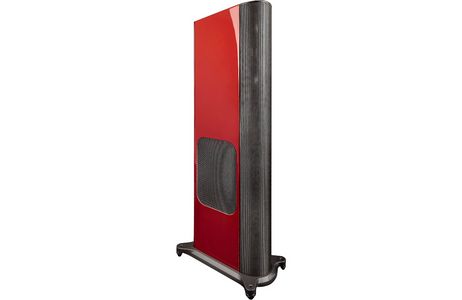

The T66 is the first model in GoldenEar’s new T Series. While it boasts several significant refinements of our time-tested design concepts, the T66 is undeniably a GoldenEar loudspeaker, placing beautiful sound and music before all else.
Honoring the Triton Series
The T66 honors the critically acclaimed Triton Series, sharing a similarly tall, slender profile; built-in DSP-controlled subwoofer amplification; and a driver complement comprising GoldenEar’s High-Velocity Folded Ribbon AMT tweeter, cast-basket mid/bass units, quadratic planar radiators, and long-throw powered sub-bass section.
Onward and Upward
Several important cosmetic and sonic refinements distinguish the new T66 from previous GoldenEar speakers. These include a dramatically augmented crossover design, high-quality internal wiring, a new cast-aluminum base and metal grille, and, in addition to GoldenEar’s Gloss Black cabinet finish, a vibrant Santa Barbara Red.
T66 Specifications:
Efficiency - 91dB 1W/1M @ 4Ω (2.83V/1M)
Frequency Response - 29Hz–25kHz typical (-6dB on axis @ 29Hz, anechoic bass response)
Nominal Impedance - 4Ω
Recommended Amplification - 20 – 500Wpc
Built-In Subwoofer Power Amplification - 1000W peak/500W RMS, DSP-Controlled (50-ohm load – 5 seconds sustained 55Hz sinusoidal signal) Note: Not tested to FTC standard (8-ohm load – 5 minutes sustained 1kHz sinusoidal signal)
Dimensions - Tower: 7.5" (19.1cm) W x 14.75" (37.6cm) D x 48.8" (124.1cm) H (with base, no spikes) Base: 11.8" (30cm) W x 17" (43.2cm) D
Weight - Product: 60lbs (27.2kg)
Driver Complement
One Reference High-Velocity Folded Ribbon AMT Tweeter
Two 4.5" High-Definition Cast-Basket Mid/Bass Drivers
Two 5" x 9" Long-Throw Quadratic Subwoofers
Two 8" x 12" Quadratic Planar Back-Wave-Driven Radiators
Passive Radiator Surface Area - 53.36in2 (344.3cm2)
