Product Dimensions 8.31"h x 18.31"w x 18.27"d

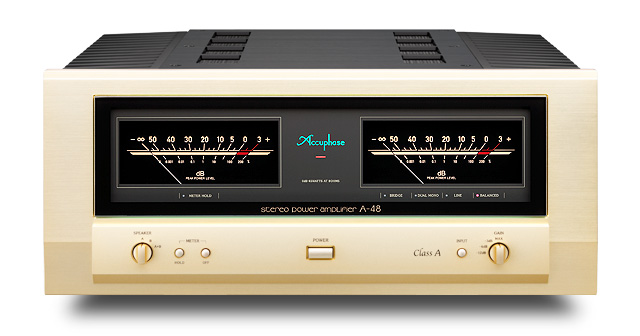

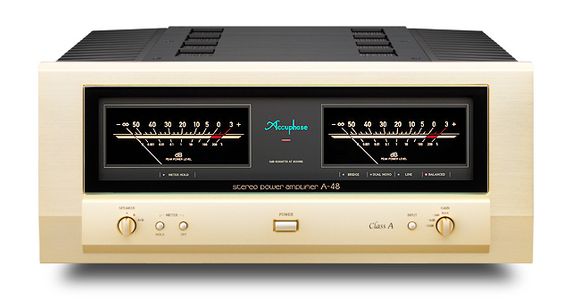

Class-A - 50W/Channel Stereo Amplifier - The A-48S incorporates state-of-the-art technologies to create a Class A power amplifier that delivers superb performance. Benefitting from years of ideal designs of high-performance units.Read More
Guaranteed Lowest Price!Call Us - 512-454-4534
The A-48S incorporates state-of-the-art technologies to create a Class A power amplifier that delivers superb performance. Benefitting from years of ideal designs of high-performance units, the A-48S utilizes 6-parallel pull-push power MOS-FETs and boasts an output of 50 W into 8 ohms, 100 W into 4 ohms, 200 W into 2 ohms, and 400 W into 1 ohm at the same size as conventional models. The noise level has also been further reduced by 6%, while providing a damping factor of 1,000. The A-48S will bring the best out of any speaker, enabling you to enjoy unparalleled sound quality and expansiveness.
The technical topics of the A-48S are enhanced power, increased drive capability, and lower noise performance. It outputs 50 watts at a speaker impedance of 8 ohms and another 200 watts at 2 ohms linearly. The damping factor is 25% higher than the former model, and the noise is 6% lower. Of course, the evolution of safety and reliability cannot be overlooked.
The A-48S, with its Class-A tone and instantaneous sound, perfectly reproduces even the subtle but exquisite expressions and emotions of music.
Class A driven 6-parallel push-pull MOS-FET output stage
Large linear output of 50 W / 8 ohms, 100 W / 4 ohms, 200 W / 2 ohms, 400 W / 1 ohm
Instrumentation amplifier
Current feedback amplification topology
Balanced remote sensing
MCS+ circuitry
Large, high-efficiency toroidal transformer
High capacity 68,000 μF filtering capacitors
Large, high-efficiency toroidal transformer
High capacity 68,000 μF filtering capacitors
Large speaker terminals connected directly to protection circuitry
Protection circuitry using MOS-FET switches
High damping factor of 1,000
Large, high-sensitivity power meters ranging from –50 dB
Bi-amping connection and bridged connection switching
Speaker output protection circuit guards against short-circuiting
Aluminum hairline finish top plate
High-carbon cast iron insulator feet with superior damping characteristics
General Specs | |
| Depth (in.) | 18.27 |
| Height (in.) | 8.31 |
| Impedance | 8 ohms |
| Width (in.) | 18.31 |
| Frequency Response | 20 Hz - 20,000 Hz |
| Amplifier Class | Class A |
| Analog Audio(RCA) Input | 2 |
| Headset Jack | No |
| Color Finish Name | Beige |
| Smart Compatible | No |
| Wifi Capable | No |
| Bluetooth Capable | No |
| Product Weight (lbs.) | 72.8 |
| Voltage | 120/220/230 |
| Amplifier Output (Watts) | 45 |
| Streaming Capable | No |
